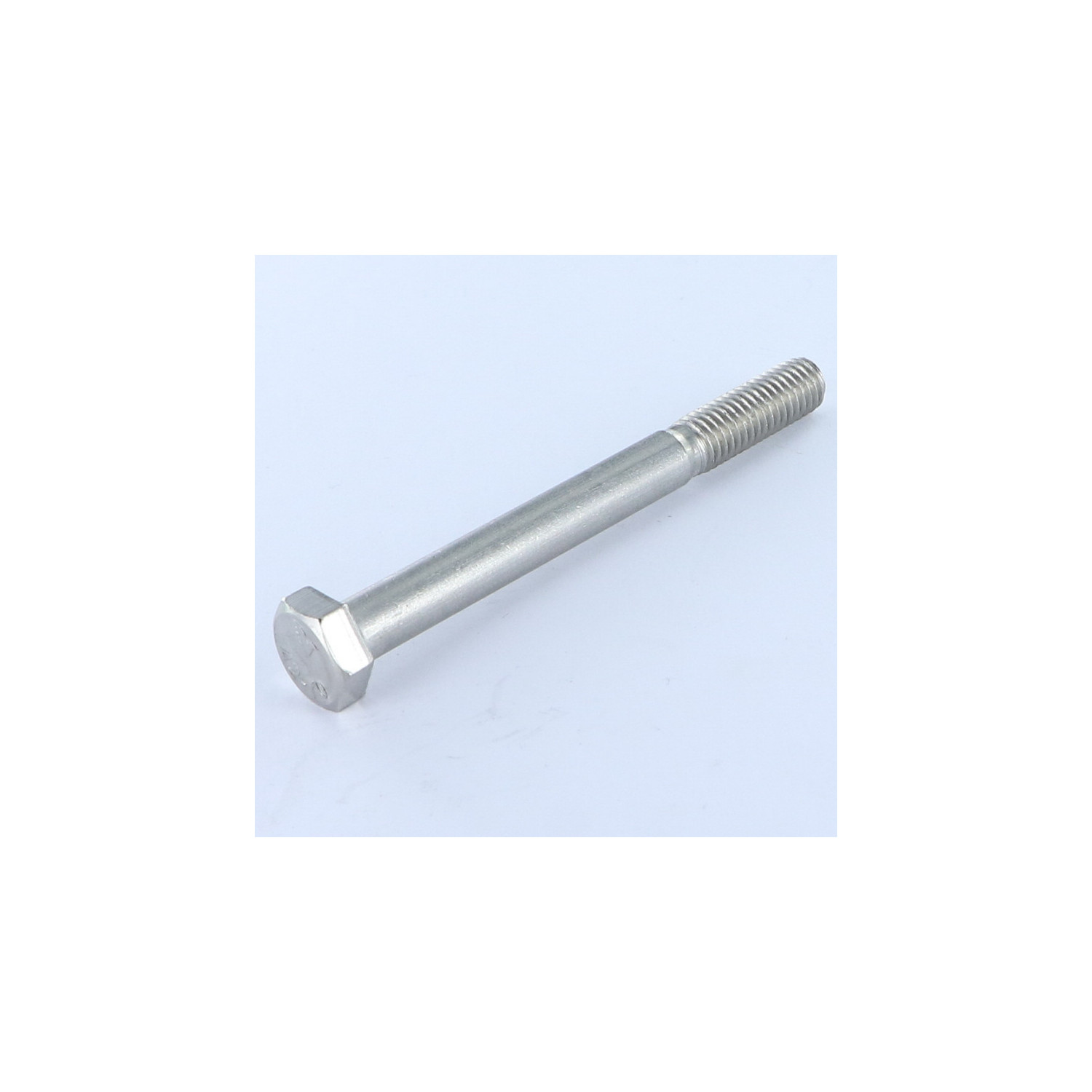

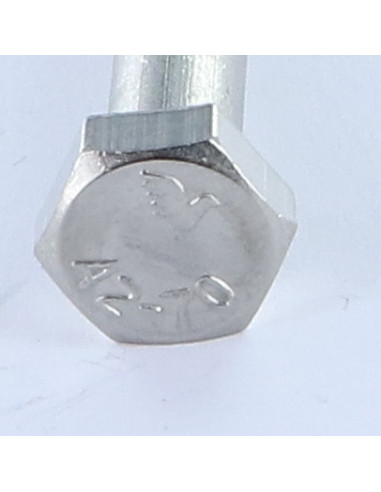

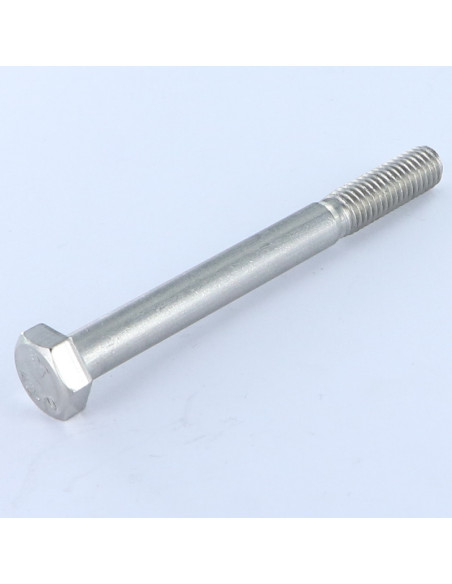

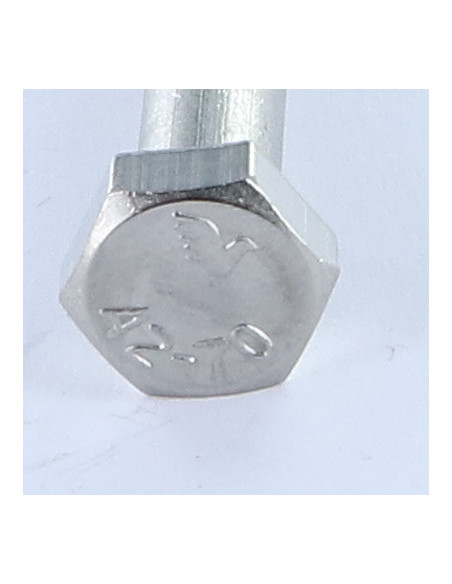

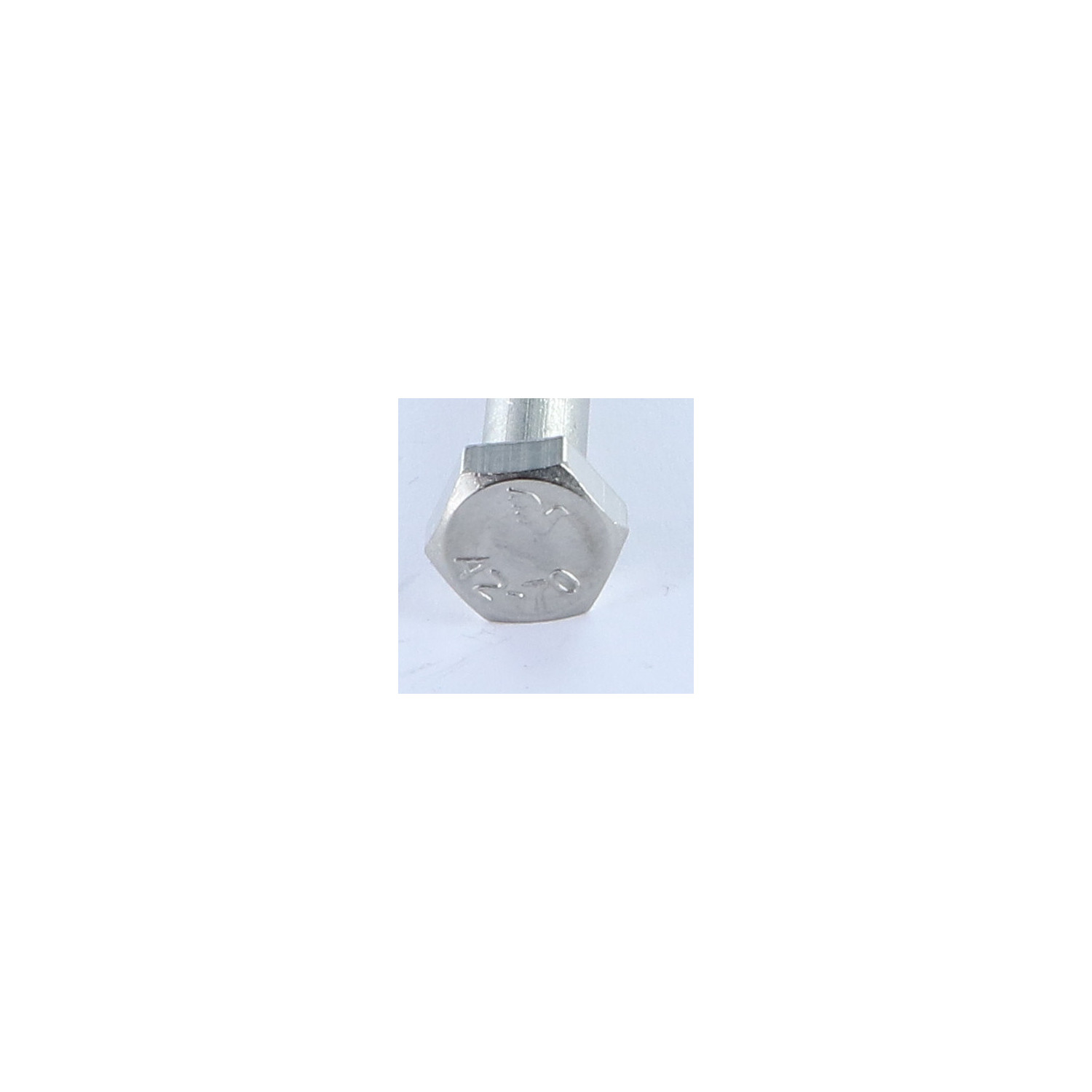

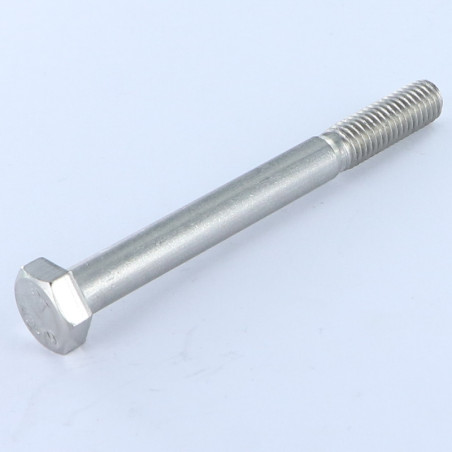

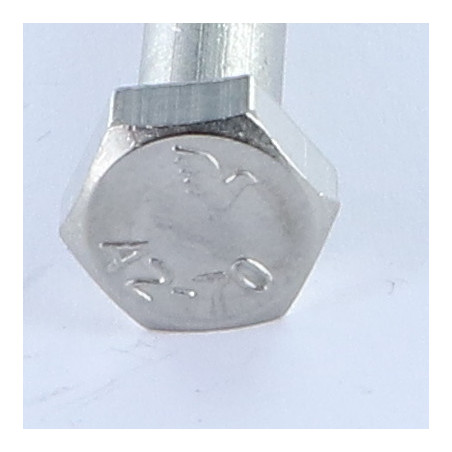

1 x Corps de boulon filetage partiel Inox A2 Tête hexagonale TH M16X90
1 x Corps de boulon filetage partiel Inox A2 Tête hexagonale TH M16X90
1 x Corps de boulon filetage partiel Inox A2...
1 x Corps de boulon filetage partiel Inox A2...

1 x Corps de boulon filetage partiel Inox A2 Tête hexagonale TH M16X90

8409169018_1
En stock 374 Pièces
5,14 € TTC
PRIX DÉGRESSIF PAR QUANTITÉ
Nombre de pièces 1 5 10 25
Prix (€ TTC) 5,14 € 14,64 € 29,16 € 73,02 €
DIN931,ISO4014,VS4109,VS0100 - Corps de boulon filetage partiel Inox A2 Tête hexagonale TH M16X90
Conditionnement
  • 1 pièce
  • 5 pieces
  • 10 pièces
  • 25 pieces

Dimensions indiquées en millimètres (mm)

Diametre
M16
Longueur
90
Matiere
Inox A2
Couleur
Gris
CLEF De
24
Norme
DIN931,ISO4014,VS4109,VS0100
Famille de produits
Boulonnerie Tête hexagonale TH
POIDS à LA pièce
171 GR
Forme tete
Tête hexagonale
Diametre en mm
15.962 - 15.692
374 Produits
3663072157477
Corps de boulon filetage partiel Inox A2 Tête hexagonale TH M16X90
Diametre = M16, Longueur = 90, Famille Sous Produits = Tete hexagonale, Matiere = A2, Norme = DIN931,ISO4014,VS4109,VS0100, Famille De Produits = Boulonnerie TH


Guide dimensionnel (en mm)
Diamètre 5 6 8 10 12 14 16 18 20 24 27 30 33
Epaisseur tete 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 15 17 18.7 21
Surplat/clef 8 10 13 17 19 22 24 27 30 36 41 46 50
Filetage si longueur totale vis < 125 16 18 22 26 30 34 38 42 46 54 60 66 72
Filetage si longueur totale vis > 125 22 24 28 32 36 40 44 48 52 60 66 72 78
Filetage si longueur totale vis > 200 0 0 0 0 0 0 57 61 65 73 79 85 91

Autre références : 6210216X90 134572 QUVIS045A 2509632 2509632 TH1690IN VIS-X/TH-FP/ BI110_160090 3663072157477
